LK-HG-3 全自动热熔喷胶机

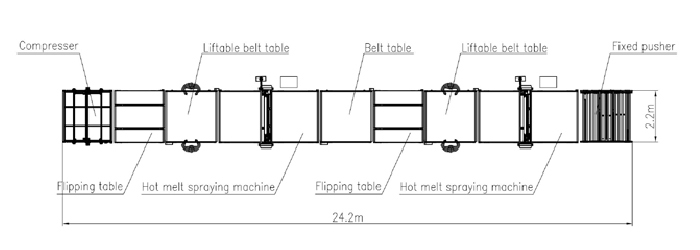

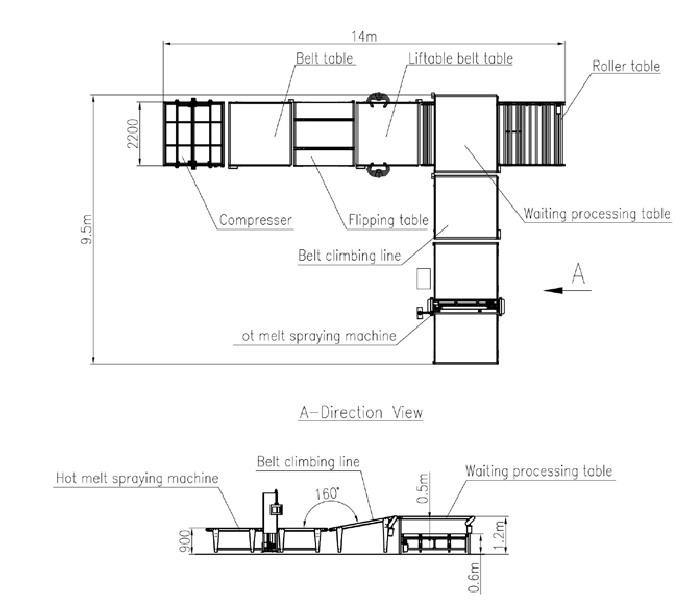

Drawing产品图
Advantages机械描述及特性
用于床网与海绵、垫料及面料之间的粘合;设有热熔胶熔器,与旋喷珠相互作用。
喷头震荡左右摆动,进而喷洒涂布粘合剂;
提供可调喷胶量操作;以及硅叠层输送带清洁辊调节速度,无需人手调节定位。

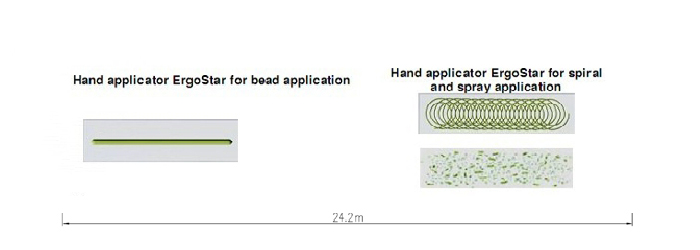

Designed to create foam encased units and/or adhere quilted mattress panels.Features a hot melt adhesive with either a spin-spray or bead application.Gluing heads oscillate left and right while applying adhesive and provide controllable application of adhesives,adjustable speed gluing application,and silicone laminated conveyor or belts with cleaning rollers,without manually adjusting and positioning.

1. 采用 PLC 控制,可连接床垫生产流水线;PLC control system,can be connected mattress production line;
2. 采用瑞士乐佰得熔胶系统,喷胶落点准确、均匀有力;Advance Switzerland Robatech Brand adhesive melter;
3. 皮带输送机导板可确保准确到位;Conveyor belt guides ensure accurate tracking;
4. 人体工学设计,操作方便;Ergonomic design and operator friendly;
5. 减少材料损耗,有效地降低生产成本;Low loss,low cost


Specifications主要技术规格
主要技术规格
生产效率 /Capacity
15 Seconds/side(1800*2000mm)
入料厚度 /Feeding thickness
10-100mm;150-400mm
入料宽度 /Feeding width
1600-2100mm
乐佰得热熔胶系统 /ROBATECH Hot melter
30KGS
组合式喷头 /Spraying heads:
 6 or 4 groups
工作温度 /Working temperature
 +5℃ --+45℃
额定功率 /Total power
8Kw
工作电源 /Power supply
380V 3phase 50/60hz
气压 /Air Pressure
0.6mpa
