LK-HG-3 automatic hot melt glue spraying line

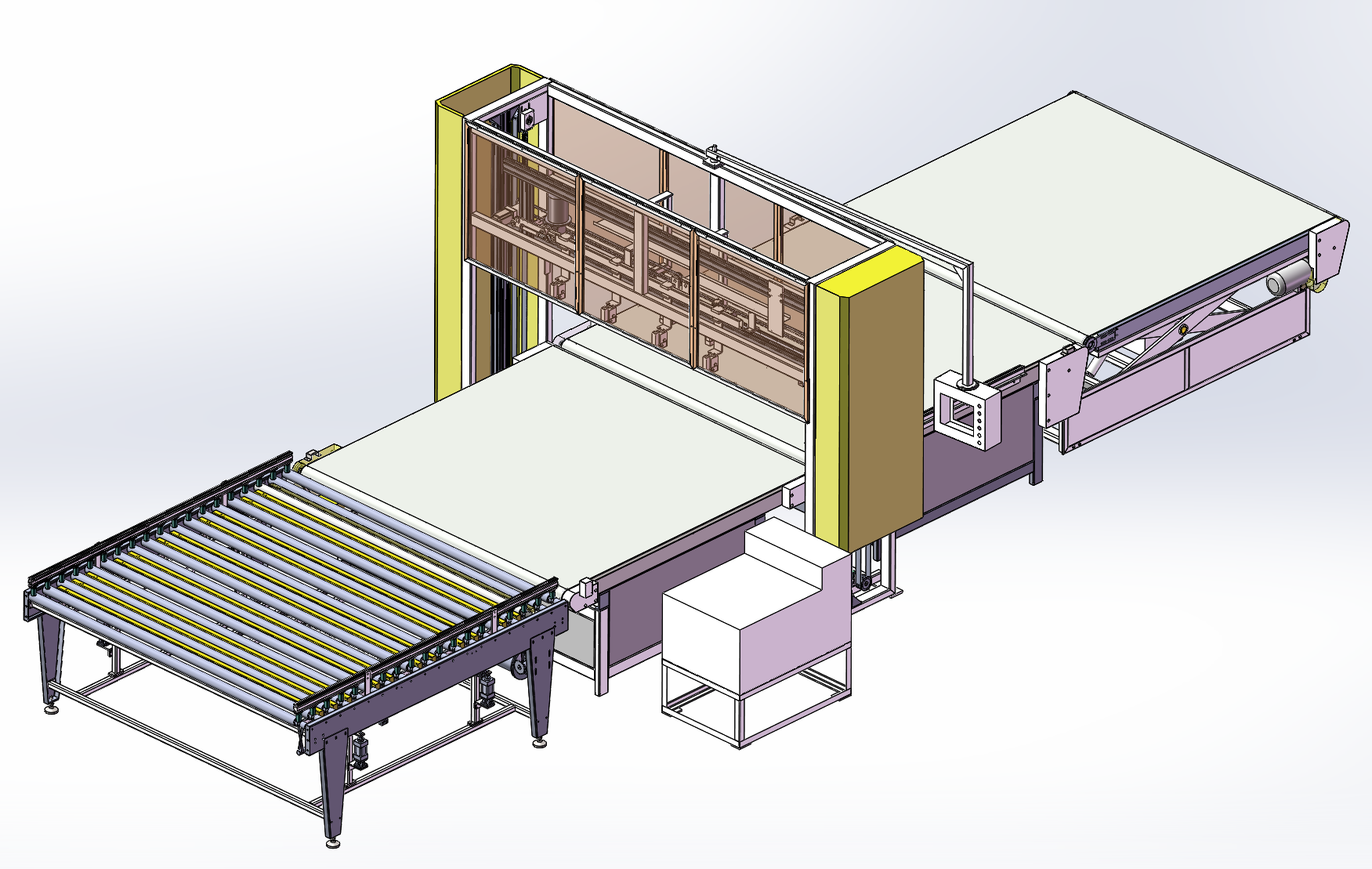

Drawing
Details
AdvantagesMechanical description and characteristics

1. Using PLC control, can be connected to the mattress production line
2. Using Swiss Robatech hot melt adhesive system, the spraying point is accurate, uniform and powerful
3. The belt conveyor guide plate can ensure accurate position
4. Touch screen design, simple and convenient operation
5. Reduce material loss and effectively reduce production costs

Specifications
Specifications
Clamping frame size （L）2500*（W）2200*（H）1000mm
Feeding width 1600-2100mm
Feeding thickness 10-100mm；150-400mm
Combined nozzle 标配5组（可根据需求增加减少）
Productivity 15秒/面（1800*2000mm）
Operating temperature +5°C-+45°C
rated power 8KW
Rated power supply  3Phase 380V 50/60Hz


Video


Video about spraying machine
